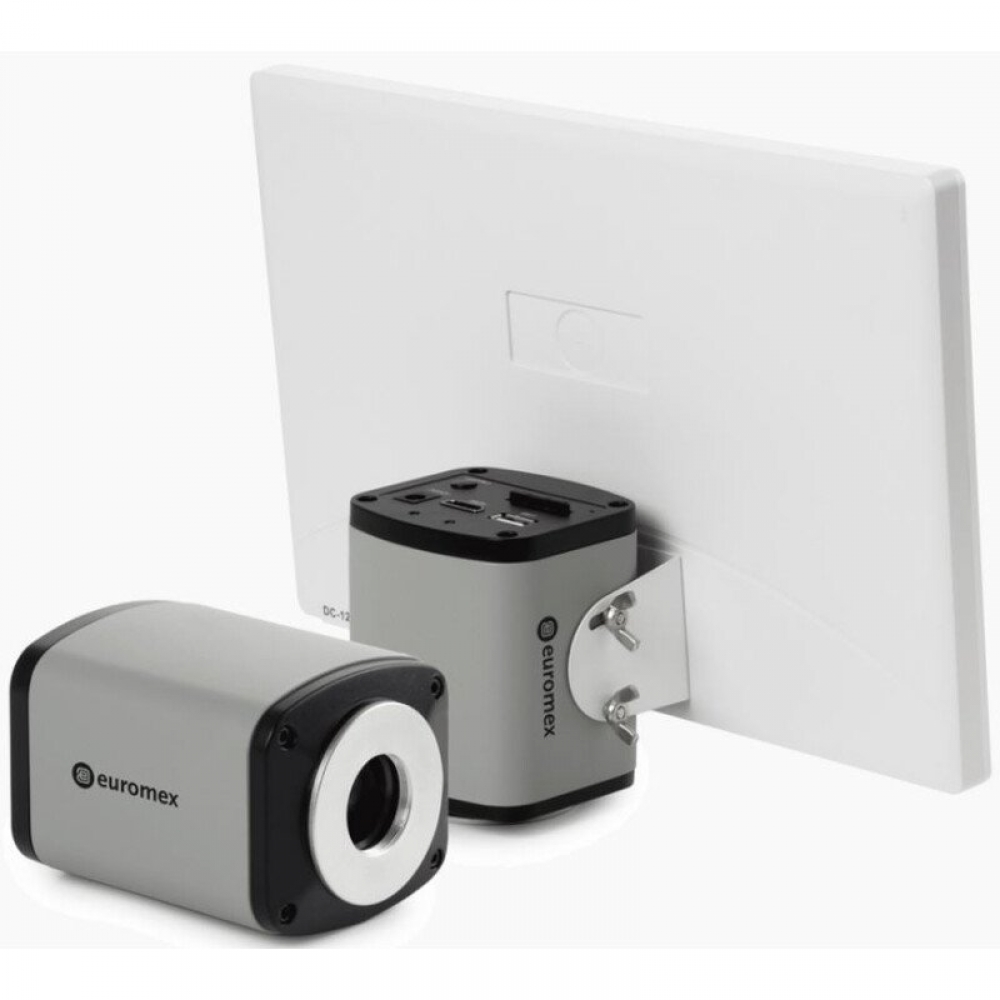

HD-Lite color camera VC.3031 - VC.3031-HDS

The Euromex HD-Lite camera offer the perfect solution to modern microscopy for industry and laboratories where real time images are needed. These HD image quality cameras can be used for biological, metallurgical or stereo microscopes High definition HD1080p CMOS color camera with HDMI and USB-2 interfaces.The real time images generated with this standalone camera provide excellent color rendering at high frame rates, up to 60 frames per second



HIGHLIGHTS

• HD 1080p high definition color cameras
• Real time images directly on TV, monitor or beamer
• Stand alone or used via PC
• Built-in mouse-driven software
• C-mount interface
• HDMI, USB-2 and SD memory card
• Compatible with ImageFocus Plus software
• Available with 11.6” HD screen (VC.3031-HDS)



TECHNICAL SPECIFICATIONS

Sensor HDMI 5.0 Mega pixels CMOS high sensitive sensor (Aptina)

Format 1/2.5 inch, HDTV 1080p (50/60 Hz)

Pixels 2592 x 1944 pixels (capture mode) 1920 x 1080 pixels (live view)

HDMI 15 fps

USB 15 fps

Video1080p pixels video recording mode

Scanmode Progressive scan

Pixelsize 2.2 µm x 2.2 µm

Noise 3D Noise Reduction function

Sensitivity 1V

Whitebalance Automatic/manual

Dynamic range 60 db

S/N max 40.5 db

Interfaces Digital HDMI, USB 2

Storage Standard high speed 8 Gb SD memory card or to USB-2

Camerabuttons On/Off

Mounting C-mount interface

Powersupply External main adapter 100-240 Vac to 12 Vdc/2A

Operation 0 – 60° C, 45-85 % humidity

Storage temperature -20 to 70° Celsius

ON SCREEN CONTROLS (NO NEED FOR COMPUTER)

· Capture images and videos to SD

· Playback images and videos from SD

· Compare images

· Grids

· Digital zoom in/out

· Flip

· Pause

· Camera settings (white balance, color control etc)

Compatibility

To be used with ImageFocus 4 software,

Windows 7 and higher and Capture software (Mac)

Delivery

• HDMI cable
• USB 2 cable
• 12Vdc/2A power supply,
• 8 Gb SD card
• USB-2 mouse
• 0,45x objective.
• Built-in mouse-driven software for image capturing, 1080p HD video recording, image comparison and browsing of captures images and videos.
• Stage micrometer 1 mm divided in 100 parts, 10 µm per division

Specifications:

Capacity
Size of chip (mm)	1/2.5"
Megapixel	5
Resolution Photograph (Pixel)	2592 x 1944
Resolution video (Pixel)	1920 x 1080
Internal memory (Megabyte)	-
Extendable storage	SD-Card 8Gb
TV output	yes
Interface	HDMI, USB 2.0
Video function	yes
Camera
Megapixel	5
Peltier cooling	no
Colour camera	yes
Image transmission	HDMI
Size of chip (″)	1./2.5
sensor	CMOS
Pixel size	2.2 x 2.2
Resolution Photograph (Pixel)	2592x1944
frame rate (fps)	15
Shutter	Rolling Shutter
Sensitivity (mV/s)	1 V
Min. exposure time (ms)	1
Max. exposure time (ms)	10000
Software	ImageFocus Plus
Supported operating systems	Win 7/8/10 Mac OS
General
Length (mm)	80
Width (mm)	70
Height (mm)	90
Weight (g)	280
Series	HD
Area of application
Live	yes
Low magnification	yes
High magnification (100x)	yes
