Delivery time : 2 to 3 weeks

VisiLED Brightfield Ringlights - for incident lighting

Brightfield ringlights for high intensity incident light illumination with 80 or 40 white LEDs

• Ringlights S80-55 and S40-55 with minimum working distance of 55 mm for objectives up to magnification 1
• Ringlight S80-25 with working distances of 25 - 50 mm for higher magnifying objectives

Illumination system specially developed for stereo microscopy and macroscopy applications

• 4 Lightheads for brightfield illumination techniques
• 3 Brightfield ringlights for high and low brightness requirements
• 1 Transmitted light stage for brightfield applications

Easily adaptable to microscope objectives by means of thumb screw and clamp ring

• Homogenous illumination.
• Best white quality: typically 5,600 K.
• Long operating life: typically 50,000
• By actively controlling the LED’s temperature.
• Segments controllable in different preset modes for optimum contrasting

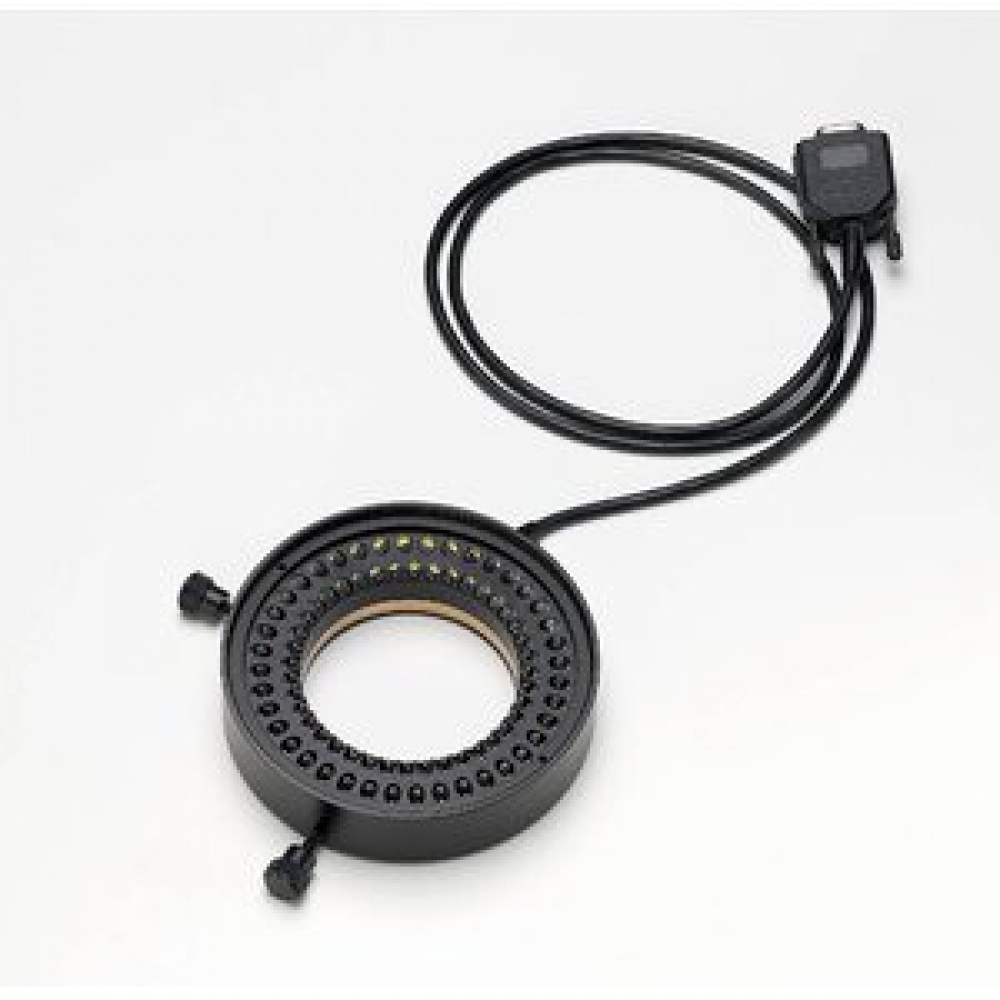

Ringlight S80-25

• Illumination Method: Brightfield
• Diodes: 80 high brightness LEDs in 8 segments
• Color Temperature: 5600K
• Working Distance: 25 mm ... 50 mm
• Max. Illuminance: 360 kLx (at 75 mm WD)
• Dimensions: outerØ: 114 mm/ innerØ: 66 mm/ height: 25 mm

Specifications:

Capacity
Temperature of color (K)	5600
Mechanics
Working distance (mm)	25-55
Segmented	yes
Lens diameter (mm)	65
General
Diameter (mm)	66
Series	VisiLED
Field of application
Biology and Medicine	yes
Industry and Materieals	yes
