Delivery time : 2 to 3 weeks

For stereo microscopy choosing the right illumination is essential to obtain a perfect image with maximum resolution. Halogen is the traditional light source of choice due to its high light intensity. The LED version almost equals this intensity but has a longer lifespan, less energy consumption and generates less heat

The major advantage of LED illumination is the constant light spectrum at all light intensity levels. The Euromex light sources are suitable for all kind of applications in industry, Life Sciences and Materials Sciences

TECHNICAL SPECIFICATIONS
• Multifunctional cold light sources without fibre light conductor
• The high luminous flux and special features are ideal for the advanced requirements in Life and Materials Sciences, various industrial applications and for stereomicroscopy
• A large range of fibre optics, adapters and accessoiries are available

FIBER LIGHT CONDUCTOR
Gooseneck self-sustaining glass fibre light conductor.
Emission angle 65°, with black metal jacket
LE.5213
Single arm fiber light conductor, Gooseneck self-sustaining, 50 cm long, Ø 4 mm

LE.5214
Dual arm fiber light conductor, Gooseneck self-sustaining, 50 cm long, Ø 4 mm

LE.5215
Triple arm fiber light conductor, Gooseneck self-sustaining, 50 cm long, Ø 4 mm

LE.5219
Dual arm fiber light conductor, Gooseneck self-sustaining, 70 cm long, Ø 4 mm

Flexible glass fibre light conductor with black PVC jacket. Emission angle 65°
LE.5216
Single arm flexible fiber light conductor, 100 cm long, Ø 4 mm

LE.5235
Dual arm flexible fiber light conductor, 100 cm long, Ø 4 mm

LE.5235-3
Dual arm flexible fiber light conductor, 300 cm long, Ø 4 mm

LE.5217
Triple arm flexible fiber light conductor, 100 cm long, Ø 4 mm

LE.5218
Single arm flexible fiber light conductor, 100 cm long, Ø 8 mm

LE.5220
Single arm flexible fiber light conductor, 200 cm long, Ø 8 mm

LE.5239
Slit ring-shaped fiber light conductor 60 cm long, Ø 8 mm

LE.5240
Slit ring shaped fiber light conductor 100 cm long, Ø 8 mm

LE.5241
Flexible fiber light conductor, curved 90°, 60 cm long, Ø 4 mm

ILLUMINATION

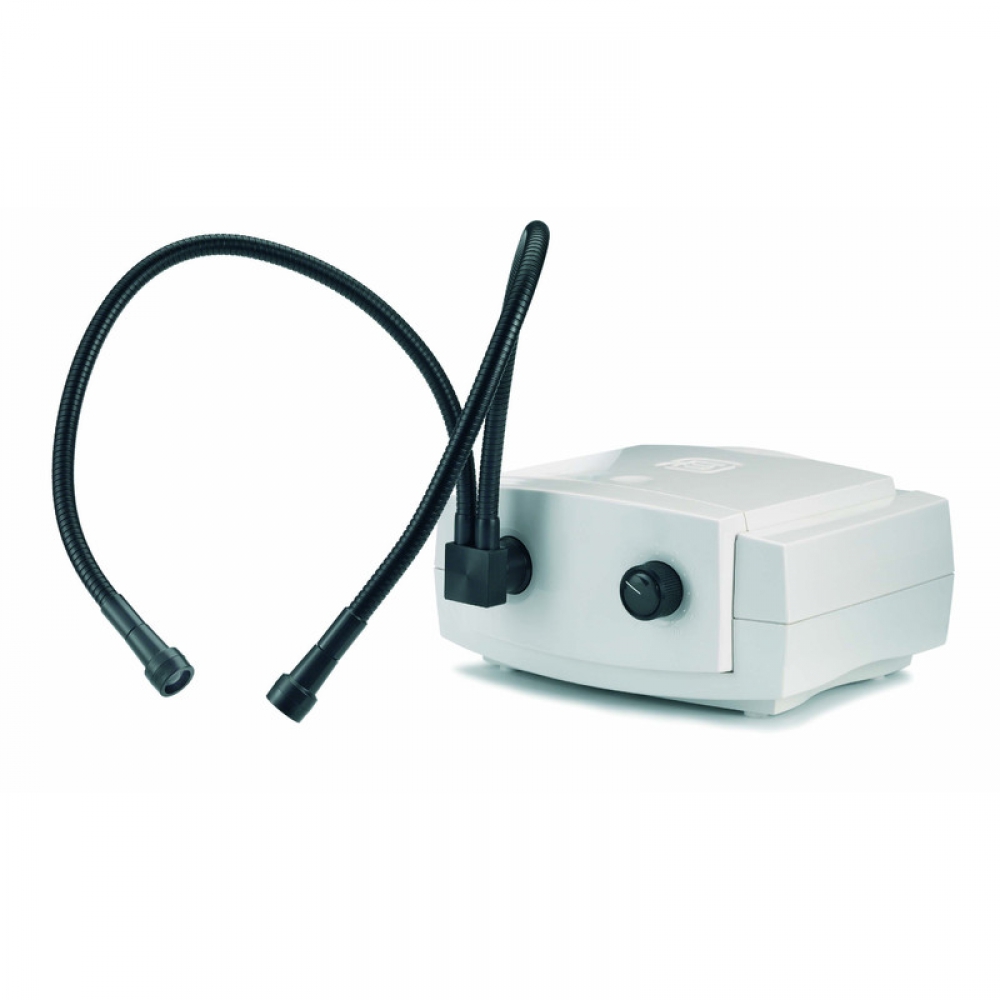

• The LE.5211 is equipped with a 150 W halogen lamp, color temperature 3100 K
• The LE.5211-LED is equipped with a 30 W PowerLED (brightness equivalent to 120 W halogen), color temperature 6500 K
• The LED versions do not require bulb changing, have longer life time, low energy consumption and produce a white light (daylight)
• No color temperature shifting when dimming (for LED models)

MODELS

Product numbers	LE.5211-100, LE.5211-240 or LE.5211-250	LE.5211-LED
Power	150 W halogen	30 W PowerLED (equivalent to 120 W halogen)
Color temperature	3,000 K	6,500 K
Operating voltage	100/110 or 230/240 or 250V AC / 12 V DC (50/60 Hz) versions	100/110 or 230/240 or 250V AC / 12 V DC (50/60 Hz) versions
Dimensions	(h) 150 x (w) 150 x (d) 230 mm	(h) 150 x (w) 150 x (d) 230 mm
Weight	3.9 kg	2.8 kg
