Delivery time : 2 to 3 weeks

LED (Light Emitting Diode) produces very useful intense white light for long microscopy observation sessions. Long life time and low energy consumption. Light intensity is adjustable

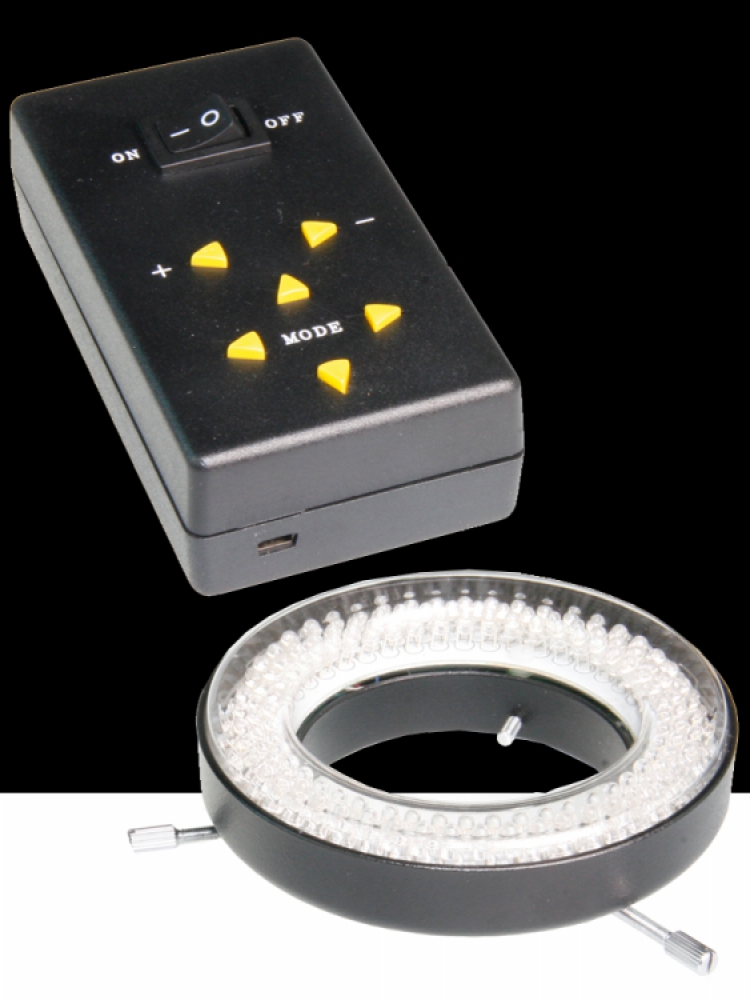

Ring light  illumination
144 LEDs

LED ring light with high illuminance and segment illumination for all kind of demanding applications. Works through separate remote control

TECHNICAL SPECIFICATIONS
LED ring light source with high illuminance and segment illumination for all kind of demanding applications. Works through separate remote control. Including mounting ring (suitable for StereoBlue, NexiusZoom and NexiusZoom EVO). Can be used without mounting adapter for stereo microscopes ZE.1624/26/29/54/57/70/71 and DZ-series
Delivered with 110-240 V power supply

RING ILLUMINATION
144 LEDs with adjustable intensity and 4 segment selection

COLOR TEMPERATURE
6,500 K

ILLUMINANCE
23,000 Lux at 100 mm distance

WORKING DISTANCE
55-200 mm

MOUNTING DIAMETER
25-61 mm (for stereo microscopes)

POWER SUPPLY
100-240 Vac / 12 Vdc (50/60 Hz)

EXTERNAL DIAMETER
100 mm
