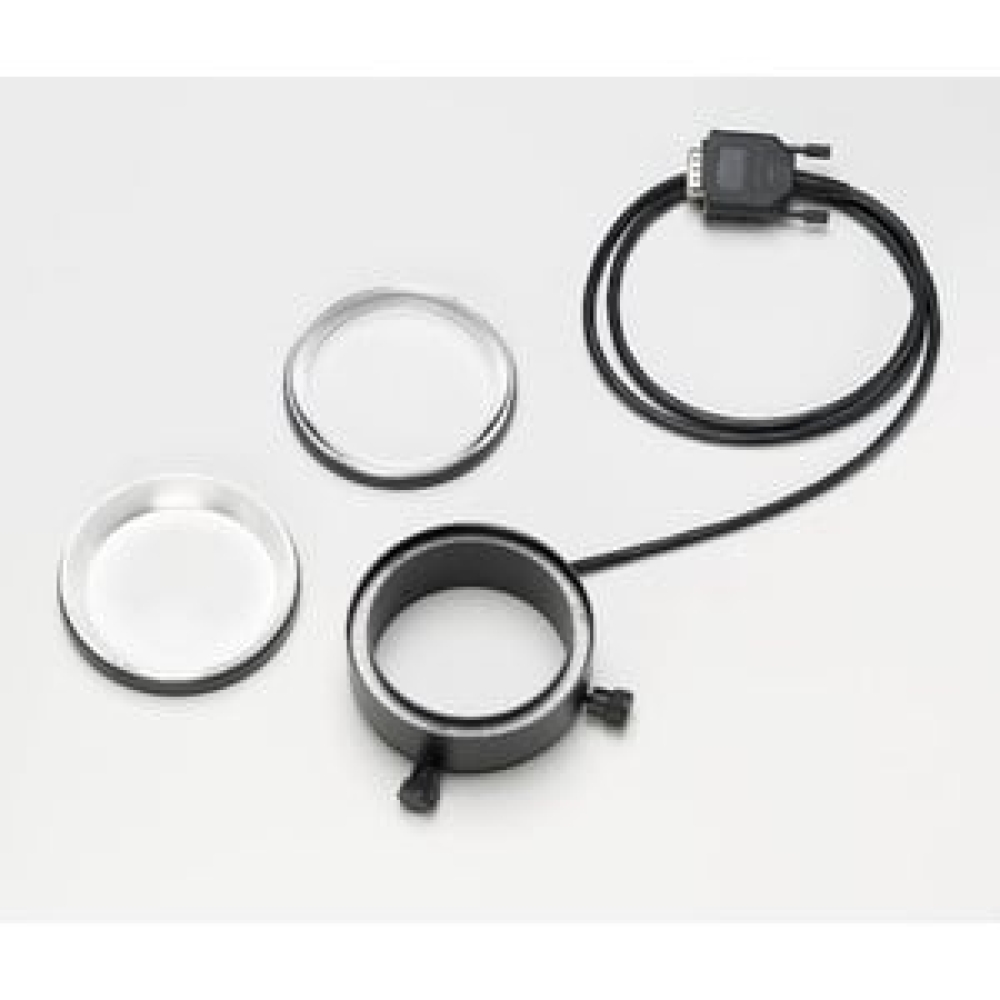

SCHOTT VisiLED Slim LED Ringlight

Focus optics rings for various working distance ranges The Slim Ringlight is a further innovative LED ringlight system, specifically developed for stereo microscopy to illuminate all types of objects in industrial and life science applications.

Due to its slim housing, it is optimal for unconfined object preparation and provides ample space for the usage with objective revolvers.

By simply exchanging screwable focus optics rings, three variable working distance ranges are possible for brightfield and darkfield illumination

Advantages:

• Easily adaptable to microscope objectives by means of thumb screws
• Homogeneous incident or oblique illumination
• Variable working distance ranges possible by exchange of focus optics rings
• Implementation of brightfield and darkfield applications
• Segments controllable in different preset modes

Benefits:

• Slim and space saving LED ringlight
• Optimal for unconfined object preparation or usage with objective revolve

Description:

• Free Working Distance: 40-90mm and 20-40mm; Focus optics rings for both working distance ranges are included
• Max. Illuminance: 65 kLx (at 50 mm FWD) 45 kLx at 25 mm FWD)
• Dimensions: outerØ: 82 mm/ innerØ: 66 mm/ height: 35.5mm and 67.5mm

Specifications:

Mechanics
Working distance (mm)	40-90 20-40
Segmented	no
Lens diameter (mm)	65
General
Diameter (mm)	66
Series	VisiLED
Field of application
Biology and Medicine	yes
Industry and Materieals	yes
