High PowerLED ring light source Illuminations LEDs have gained acceptance in both quality control applications and in production. Light emitting diodes have the advantage of being a cold light source with a constant spectral output over very long life times. Maximum illuminance in metal construction for professional usage

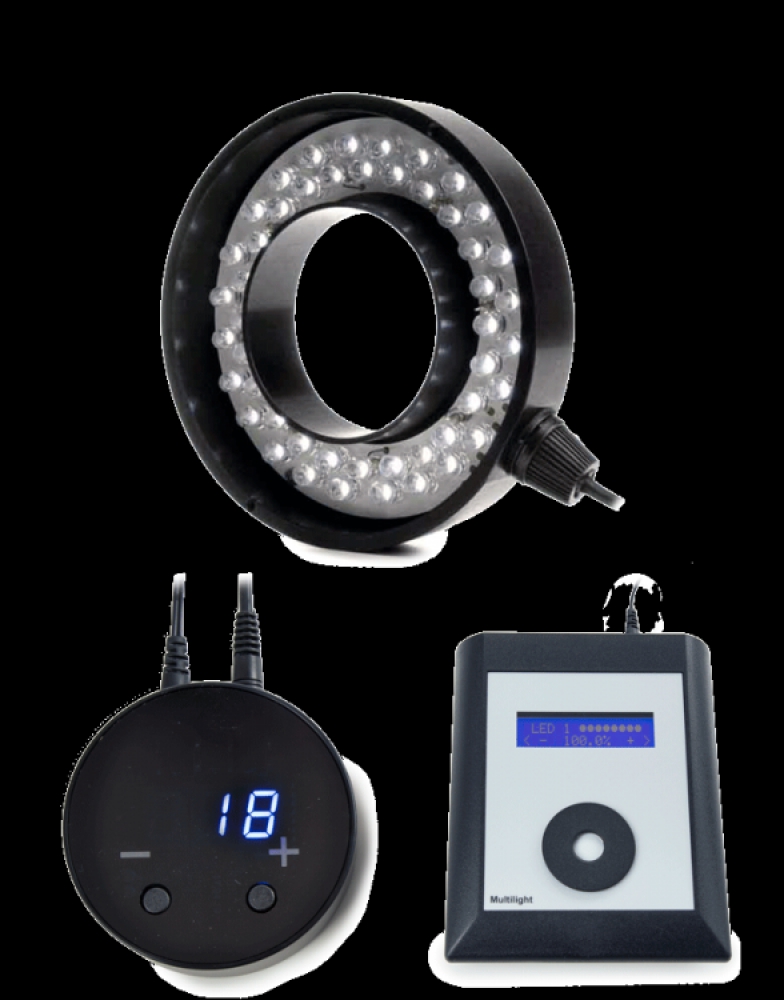

Ring light source illumination
Professional high PowerLED

With adjustable intensity, optional power supply/ segment controller, diffuser, polarizers and Fresnel focusing lenses for perfect illumination of objects

TECHNICAL SPECIFICATIONS
• The illumination can be diffuse or optimized with dedicated Fresnel lenses for shorter or longer working distances
• Light emitting diodes have the advantage of being a cold light source with a constant spectral output over very long life times
• LED ring light source with maximum illuminance and metal contruction for professional usage
• With adjustable intensity, optional power supply/ segment controller, diffuser, polarizers and Fresnel focusing lenses for perfect illumination of objects

NUMBER OF LED'S
48 LEDs with adjustable intensity

COLOR TEMPERATURE
6,000 K

ILLUMINANCE
17,000 Lux at 100 mm distance

FOR MOUNTING DIAMETERS
30-66 mm

INTERNAL DIAMETER
45 mm

EXTERNAL DIAMETER
90 mm

OUTPUT CONNECTOR
Analog controller  (LE.1980) / Digital segments controller for 8, 4 or 1 segment (LE.1981)

INTENSITY
Adjustable from 0-100 %

REQUIRED POWER SUPPLY
LE.1992 (for LE.1980) / LE.1993 (for LE.1981)
