High PowerLED Ring light source Illuminations LEDs have gained acceptance in both quality control applications and in production. Light emitting diodes have the advantage of being a cold light source with a constant spectral output over very long time span. Maximum illuminance in metal construction for professional usage

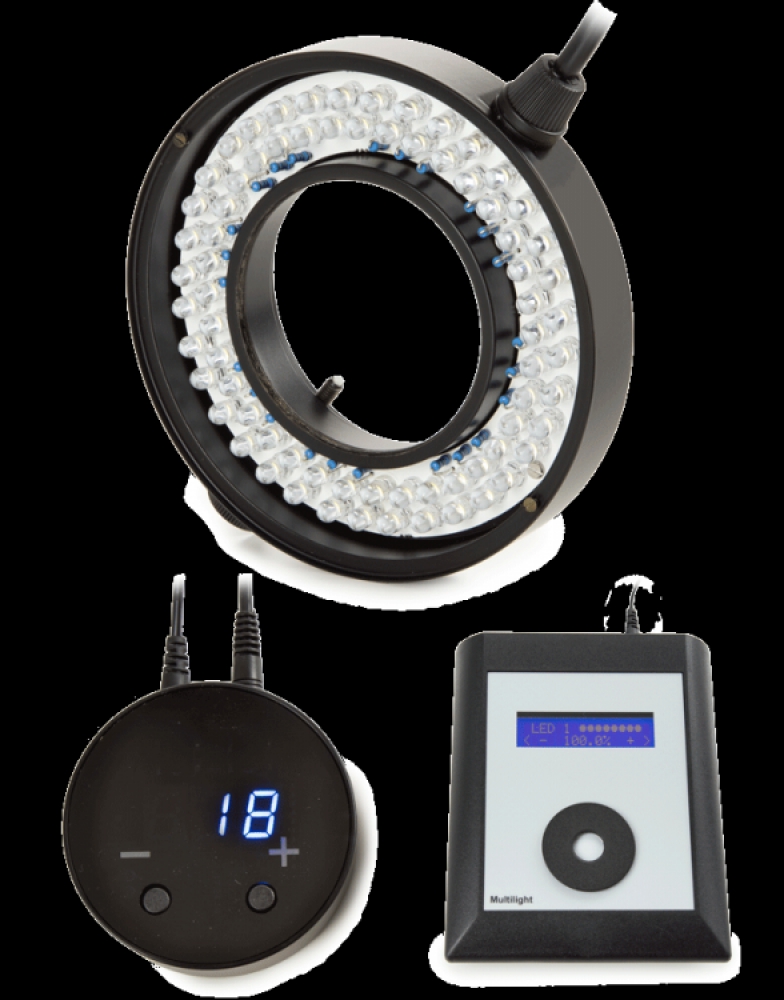

Ring light source illumination
Professional high PowerLED

With adjustable intensity, optional power supply/ segment controller, diffuser, polarizers and Fresnel focusing lenses for perfect illumination of objects

TECHNICAL SPECIFICATIONS
LED ring light source with maximum illuminance and metal contruction for professional usage. With adjustable intensity, optional power supply/ segment controller, diffuser, polarizers and Fresnel focusing lenses for perfect illumination of objects

RING ILLUMINATION
72 LEDs with adjustable intensity

COLOR TEMPERATURE
6.000 K

ILLUMINANCE
21.000 Lux at 100 mm distance

FOR MOUNTING DIAMETERS
40-66 mm

INTERNAL DIAMETER
60 mm

EXTERNAL DIAMETER
110 mm

OUTPUT CONNECTOR
Analog controller (for LE.1990) / Digital segments controller for 8, 4 or 1 segment ( for LE.1991)

INTENSITY
Adjustable from 0-100 %

REQUIRED POWER SUPPLY
LE.1992 (for LE.1990) / LE.1993 (for LE.1991)
