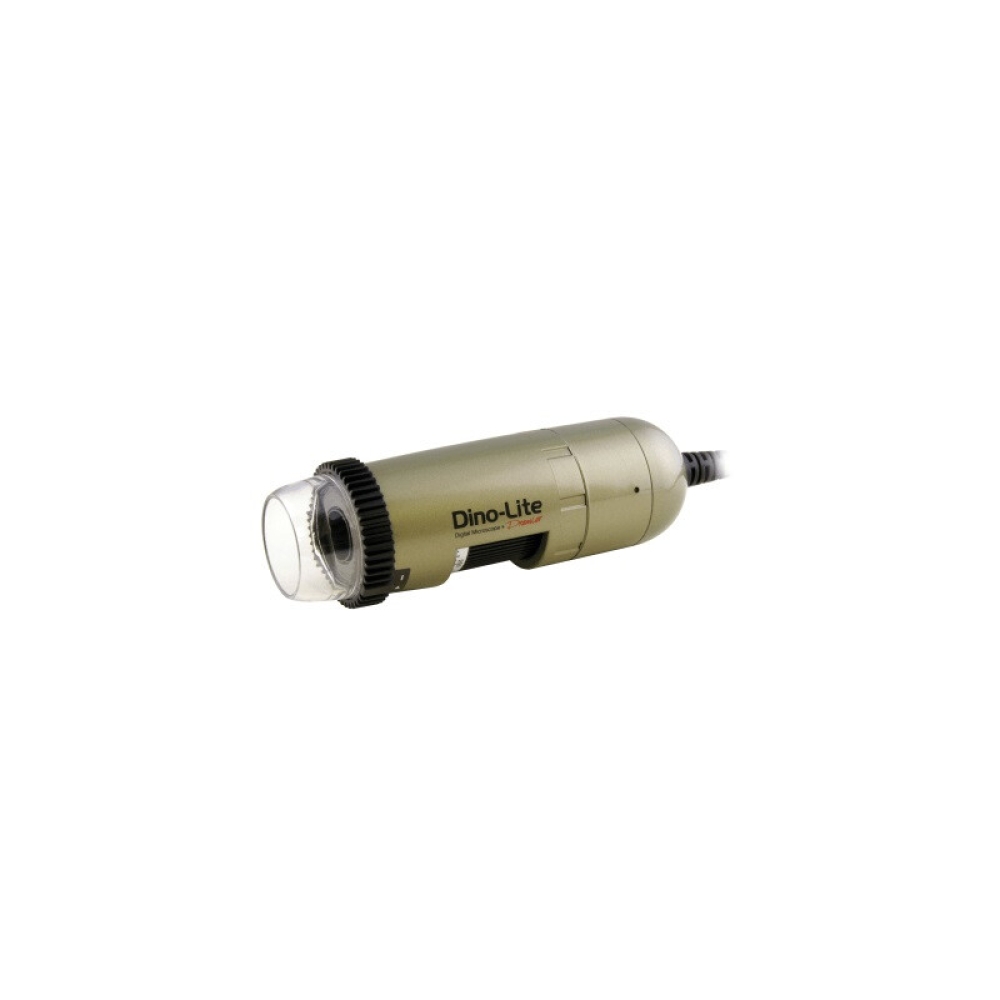

Dino-Lite AM4113ZTL

By using the polarisation filter, the AM4113ZTL is the right choice when working with materials with high glare, such as plastics and metals. This model also has a long working distance.

Specifications

Lighting

• Light/ LED type: White
• Number of LEDs: 8
• LED on/off switchable: Yes
• Infrared filter: IR cut filter >650 nm
• Diffuser available: No
• Emission filter: No
• Polariser: Yes, linear

Optics

• Magnification: 10-90x
• Macro zoom: No
• Working distance: Long
• Lens type: Glass with anti-reflection coating

Sensor

• Sensor type: CMOS
• Resolution: 1.3 megapixels (1280x1024)
• Maximum frame rate: 30 fps

Compatibility

• Interface: USB 2.0
• Operating system: Windows 7, 8, 10 & 11, MacOS 10.9 and up
• Included software: DinoCapture 2.0 (Windows), DinoXcope (MacOS)
• Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
• Supported video formats (Windows): WMV, FLV, SWF
• Supported image formats (MacOS): JPEG, PNG
• Supported video formats (MacOS): MOV
• Imaging standards: DirectShow, UVC
• Wi-Fi: Wireless-ready, requires the WF-10 WiFi streamer (optional)

Housing

• Housing material: Composite/plastic housing
• Magnification lock: Yes
• Dimensions: 10.5 cm (L) x 3.2 cm (D)
• Weight: 105 g
• Cable length: 1.8m

Features

• Special feature: No
• Measurement: Yes
• Calibration: Yes
• Microtouch sensor: Yes
• ESD safe: No

Information

• Package contents: Microscope, carry pouch, software CD, calibration target, ZT-Z-CC1 cap closure, user manual
