High Performance in a Cost-Effective System

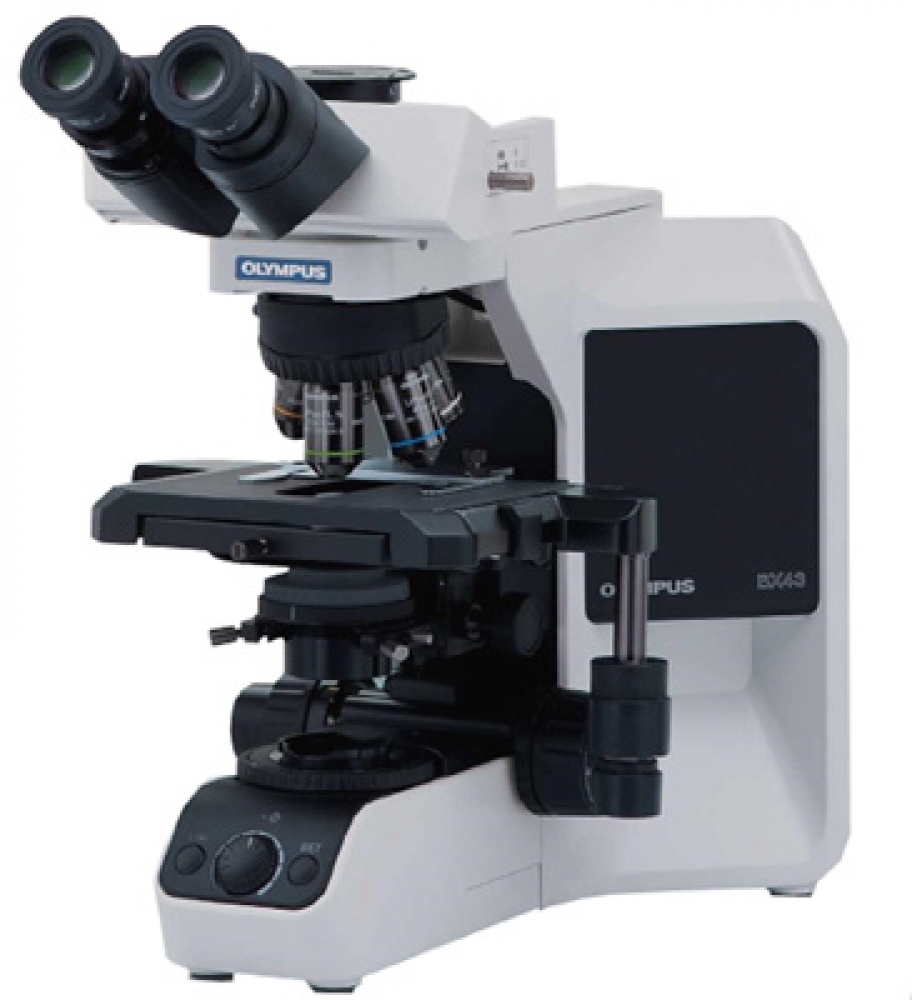

The modular BX43 microscope enables you to choose between cost-efficient and advanced configurations, depending on your needs. Modular components, such as ergonomic observation tubes and stages, make it simple to customize your microscope to your application.

High Color Rendering White LED

With luminosity equivalent to a 30 W halogen lamp, this long-lasting LED provides a consistent color temperature at any brightness level with an estimated 20,000-hour lifetime.

Maintain Brightness when Changing Magnifications

The light intensity manager eliminates the step of having to adjust the brightness when changing magnification, helping you complete your work faster and with less eye strain.

Customizable for Different Observation Styles

Modular units enable you to customize your microscope for brightfield, polarization, phase contrast, and fluorescence. Modular options include:

• Condensers
• Observation Tubes
• Nosepieces
• Stages
• Objectives
• Intermediate optics

Observe Cellular Tissue

The LPLN40X objective enables you to image thick, clear samples at 40X magnification. The objective’s correction collar makes it easy to adjust for the spherical aberration caused by differences in cover glass thickness to get clear images.

Stay Comfortable with the Ergonomic Tube

The tube moves up and down, tilts, and extends forward and back. With this one component, users of nearly any height can adjust the scope so that they’re comfortable.

LED Made for Clinical Research Applications

The LED’s color rendering index is similar to a halogen bulb with a daylight filter. Stains look the same as if you were using a traditional daylight filtered halogen lamp and similar colors can be differentiated. Unlike a halogen light source, the LED has an estimated 20,000-hour lifetime.

Condensers for Clinical Research Brightfield Applications

For clinical research where brightfield observation of stained specimens, such as HE-stained tissue, is common, we offer condensers with white tops, enabling you to easily position slides by eye. Condensers for darkfield, phase contrast, and low-magnification observations are available.

Observation Method	Brightfield		✓
	Darkfield		✓
	Phase Contrast		✓
	Fluorescence (Blue/Green Excitations)		✓
	Fluorescence (Ultraviolet Excitations)		✓
	Differential Interference Contrast		✓
	Simple Polarized Light		✓
Illuminator	Transmitted Köhler Illuminator	LED Lamp	✓
		30 W Halogen Lamp	✓
	Fluorescence Illuminator	100 W Mercury Lamp	✓
		Light Guide Illumination	✓
Focus	Focusing Mechanism	Stage Focus	✓
Intermediate Magnification Changer	Manual Terret		✓
Revolving Nosepiece	Manual	Coded (7 positions)	✓
		Standard (7 positions)	✓
Stage	Manual	Manual Stages with Right-Hand Control	X: 76 mm (3 in.), Y: 52 mm (2 in.)
	Mechanical	Oil Rectangular Stage with Right-Hand Control	X: 76 mm (3 in.), Y: 52 mm (2 in.)
		Plain Stage	Dimensions: 180 mm × 150 mm (7 in. × 6 in.)
		Rotatable Graduated Stage	Rotation: 360 degrees
Condenser	Manual	Universal Condenser	NA 0.9/ W.D. 1.5 mm for 1.25X–100X [swing-out: 1.25X–4X, with oil top lens: (NA 1.4/ W.D. 0.63 mm)]
		Swing-Out Condenser	NA 0.9/ W.D. 2 mm (1.25X–100X)
		Achromatic/Aplanatic Condenser	NA 1.4/ W.D. 0.7 mm (oil) (10X–100X)
		Darkfield Condenser Dry	NA 0.8–0.92/ W.D. 4.52 mm (10X–40X)
		Darkfield Condenser Oil	NA 1.2–1.4/ W.D. 0.5 mm (20X–100X)
		Low Magnification Condenser	NA 0.75/ W.D. 1.55 mm (2X–100X)
		Abbe Conenser	NA 1.1/ W.D. 0.7 mm (oil) (4X–100X)
		Phase Contrast Condenser	NA 1.1/ W.D. 0.7 mm (4X–100X)
		Polarizing Condenser	NA 0.9/ W.D. 1.3 mm (slide glass 1.5 mm) (4X–100X)
Observation Tubes	Widefield (FN 22)	Binocular	✓
		Tilting Binocular	✓
		Trinocular	✓
		Tilting Trinocular	✓
		Ergonomic Tilting Binocular	✓
		Tilting, Telescopic, Lifting Binocular	✓
		Trinocular for Infrared	✓
		Erected Trinocular	✓
		Erected Ergonomic Tilting Binocular	✓
	Super Widefield (FN 26.5)	Trinocular	✓
		Erect image tilting trinocular	✓
Dimensions (W × D × H)			274.5 mm × 362 mm × 410 mm (10.8 in. × 14.3 in. × 16.1 in.) (Standard configuration)
Weight			13.2 kg (29 lb) (Standard configuration)
Operating Environment	Indoor Use	Ambient Temperature	5 °C–40 °C (41 °F–104 °F)
		Maximum Relative Humidity	80% for temperatures up to 31 ºC (88 ºF), decreasing linearly through 70% at 34 ºC (93 ºF), 60% at 37 ºC (99 ºF), to 50% relative humidity at 40 ºC (104 ºF)
		Supply Voltage Fluctuations	±10 %
