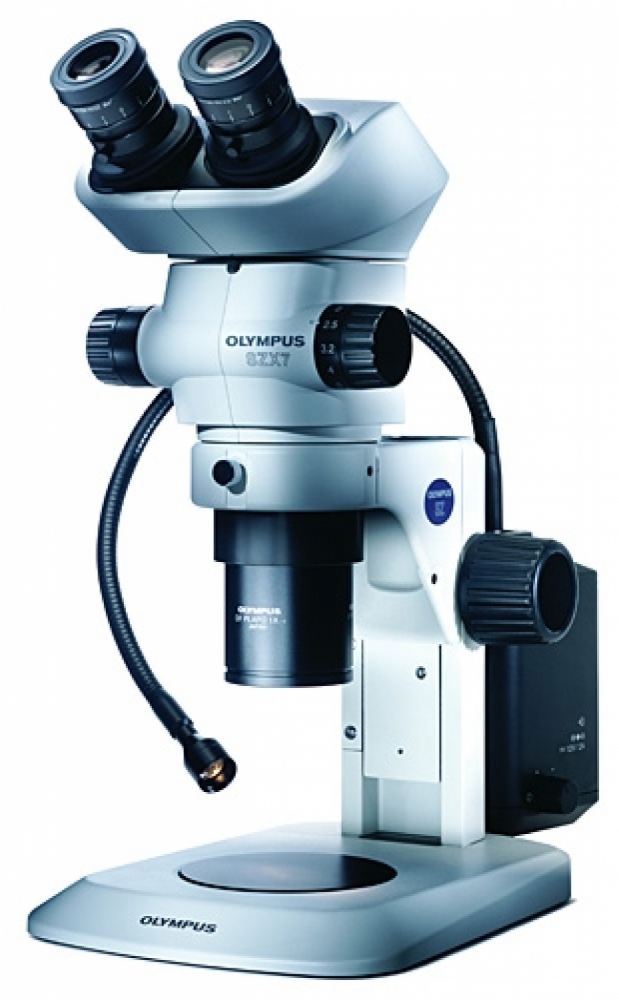

Cost-Efficient Stereo with System Modularity

Galilean Optical System

The Galilean optical system employs two (right/left) independent and parallel zoom optical paths, achieving both superior optical performance and high system modularity. Careful selection of lens surface coatings and apochromatic zoom optics make it possible to observe and document specimen in more similar coloration to their original authentic colors.

Wide 7:1 Zoom Ratio

Covering a zoom magnification range of 8x-56x with its 1x objective, and offering up to 112x magnification with a 2x objective, the SZX7’s macro-to-micro flexibility makes it suitable for a wide range of routine observation and inspection tasks.

Choice of High-Performance Objectives

The DFPlan series combines high-NA resolving power and working comfort with "distortion-free" optical design for exceptionally flat imaging, and includes a 2x objective lens with an NA of 0.2 for high-resolution imaging at 600 linepairs per millimeter.

Comfortable LED Illumination Base

The universal reflected/transmitted light LED illumination stand brings together all the advantages of LED technology. The flat, high-brightness LEDs allow successful integration of transmitted illumination into a very slim base, which in turn facilitates easy specimen access and manipulation.

Choice of Suitable Contrast and Observation Method

SZX2-ILLTQ/SZX2-ILLTS

With a slim 41.5 mm design, that is approximately half the thickness of previous halogen lamp transmitted light illumination bases, new LED transmitted light illumination bases have a lower height to enable a low eyepoint and easy access to base-mounted samples during observation and operation.

Cartridges for SZX2-ILLTQ/SZX2-ILLTS

The LED illumination base SZX2-ILLTQ with quad position turret enables the user to choose cartridges and to switch from brightfield (standard/high/low), oblique (standard/high/low), darkfield, polarized illumination, and shutter with a simple turn. A one position LED illumination base is also an option (SZX2-ILLTS). This makes the SZX7 a flexible microscope for various samples and observation tasks.

Observation Method	Fluorescence (Blue/Green Excitations)		✓
	Simple Polarized Light		✓
	Brightfield		✓
	Darkfield		✓
	Oblique		✓
Zoom	Zoom Ratio		7
	Magnification Indication		0.8, 1, 1.25, 1.6, 2, 2.5, 3.2, 4, 5, 5.6
	Features		SZX-ZB7 Click stop for each zoom magnification: ON-OFF switching possible Zoom drive: Horizontal knob system Lead-free
Optics	Galilean Optical System		✓
Illuminator	Fluorescence Illuminator	Hg Lamp	✓
		Light Guide Illumination	✓
Focus	Focusing Mechanism	Coarse Focus	✓
	Load Capacity		0-10.0kg/ 2.7–15.0kg/ 8.0–25.0kg
	Coarse Handle Stroke		80 mm 120 mm
	Coarse Handle Stroke per Rotation		36.8 mm
	Fine Handle Stroke per Rotation		0.77 mm
Observation Tubes	Widefield (FN 22)	Binocular	✓
		Trinocular	✓
		Tilting Trinocular	✓
		Ergonomic Long Tilting Trinocular	✓ (Intermediate magnification is 1.25X)
	Tube Inclination Angle		5–45° 30° 45°
	Trinocular Tube Light Path Selection (Camera : Observation)		50%:50%, 0%:100% 0%:100%, 100%:0%
	Interpupillary Distance Adjustment		52–76 mm 57–80 mm
Extendable Eyepoint Adjuster			Height adjustment range: 30–150mm, (with a scale attached)
Stands	Standard Stand		✓
	Optional Bases and Stands	Quad Position LED Transmitted Light Illumination Base	✓
		Single Position LED Transmitted Light Illumination Base	✓
		Large Stand	✓
		Universal Stand	✓
Dimensions			194 (W) × 253 (D) × 403 (H) mm (Standard Set Configuration)
Operating Environment	Indoor Use	Ambient Temperature	0–40 ºC (32–104 ºF)
		Maximum Relative Humidity	30–90 %
Eyepiece			WHSZ10X-H FN 22* WHSZ15X-H FN 16* WHSZ20X-H FN 12.5* WHSZ30X-H FN 7* *with diopter adjustment and reticle
Objectives			DFPL0.5X-4, WD 171 mm, NA 0.05 DFPL0.75X-4, WD 116 mm, NA 0.075 DFPLAPO1X-4, WD 81 mm, NA 0.1 SZX-ACH1X, WD 90 mm, NA 0.90 DFPLAPO1.25X, WD 60 mm, NA 0.125 SZX-ACH1.25X-2, WD 68 mm, NA 0.125 DFPL1.5X-4, WD 45.5 mm, NA 0.15 DFPL2X-4, WD 33.5 mm, NA 0.2
Fluorescence Illuminators			Coaxial fluorescence illuminator 4 position filter slider
